PCB Copper Busbar Inspection: Flatness vs Datum-Based Parallelism

PCB Copper Busbar Inspection: Flatness vs Datum-Based Parallelism

At a glance

Separate surface form from datum-related orientation, with an ideal-plane example and inspection records for controlled faces, datums, support and evaluation.

A PCB copper busbar face meeting flatness does not establish parallelism to its mounting datum. Flatness controls surface form; parallelism also controls orientation to a specified datum. Identify controlled faces, datums and tolerances separately and retain datum-establishment and support methods.

A flat face can be inclined

KEYENCE classifies flatness as datum-independent form control and parallelism as datum-related orientation control. Both can use a zone between two planes, but a surface-parallelism zone has its orientation constrained by the specified datum.

Assume an ideal plane B rises 0.10 mm over 50 mm projected along datum plane A. B still has zero ideal flatness deviation. Two planes parallel to A enclosing B over this ideal geometry require 0.10 mm separation. This illustrates the difference between form and orientation, not a busbar tolerance.

RequirementControlsDocument
FlatnessForm of one specified surfaceExtent, tolerance, evaluation
ParallelismDatum-related orientation and controlled surfaceDatum identification, establishment, zone
Thickness sizeDrawing-defined dimensional requirementLocations and applicable rules
RoughnessTexture parameter at a specified scaleParameter, direction, conditions

A surface plate is not automatically the drawing datum

Identify the designated datum feature and establish the datum under the drawing's tolerancing system and approved method. Placing an arbitrary face on a plate may change the inspection relationship. Levelling the measured face to reduce indicator variation cannot then be reported as parallelism to the original datum.

Define controlled regions around holes, chamfers, raised features and plating. Record free or constrained state, supports and contact force for thin busbars. Do not press away the deformation being evaluated. Keep clamped and free-state results distinct.

Make the report reproducible

Retain face/datum sketches, point coverage, raw coordinates, fitting or evaluation algorithms and equipment status. Sparse points can miss local form; one scan may not cover the face. Set the sampling plan for actual geometry and risk. This page prescribes no universal point count or acceptance value.

For custom PCB copper busbars, provide mating geometry and assembly datums rather than only “flat bottom.” Ra and Rz roughness requirements address another property. A bright finish or compliant roughness cannot replace geometric requirements.

Questions

Do equal thickness readings at a few points prove parallel faces? A limited set does not cover full-face form and orientation; use the complete drawing and measurement method.

Can both results use one platform height range? Confirm datum, direction and evaluation before assigning a geometric characteristic name.

References

KEYENCE form tolerance; KEYENCE orientation tolerance.

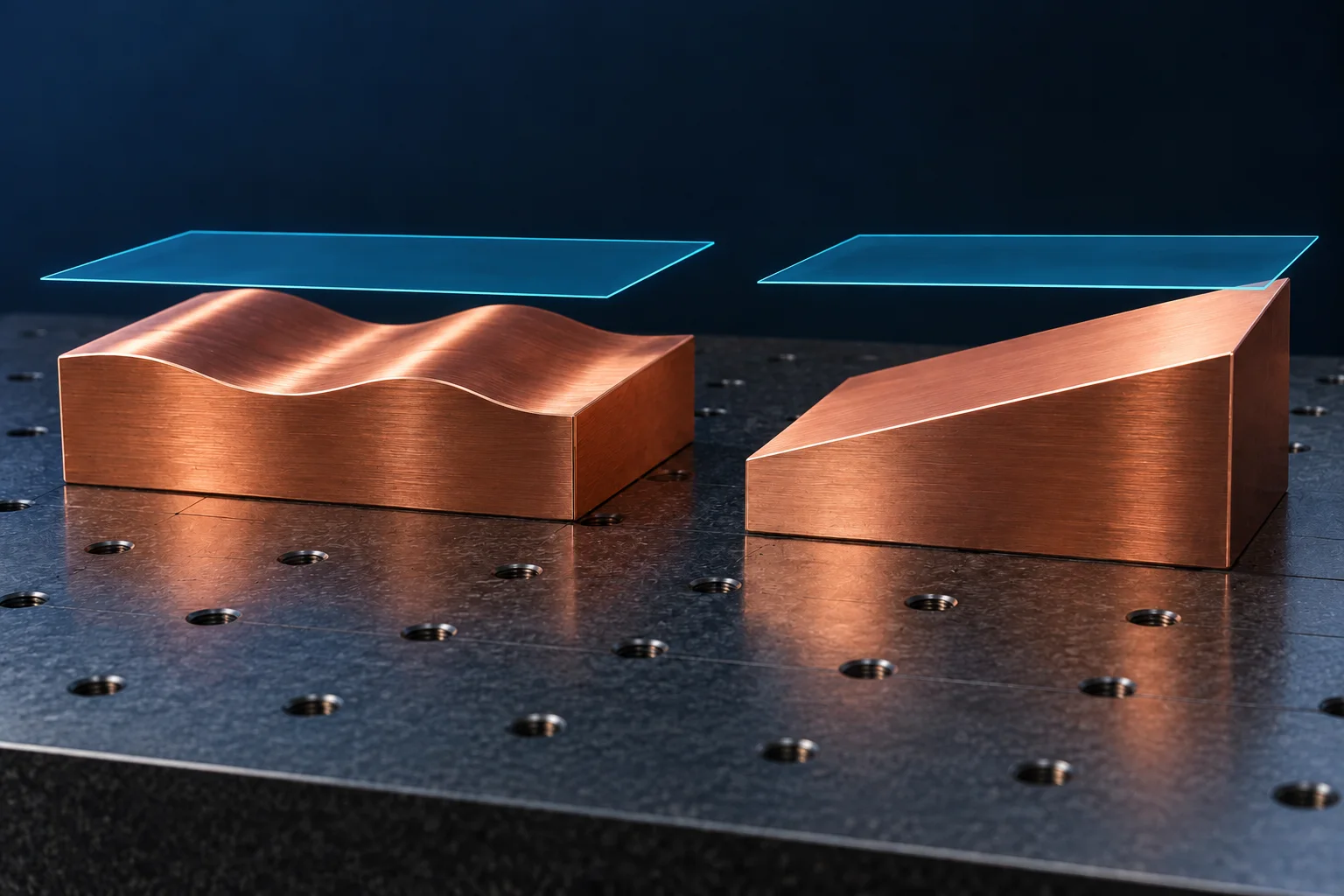

Cover is an AI-generated geometric concept, not Hongchuan inspection evidence. Ideal planes and the 0.10 mm example specify no manufacturing tolerance or measurement capability.
