SMT Bus Bar - Surface Mount Copper Strip Selection Guide & Technical Specifications

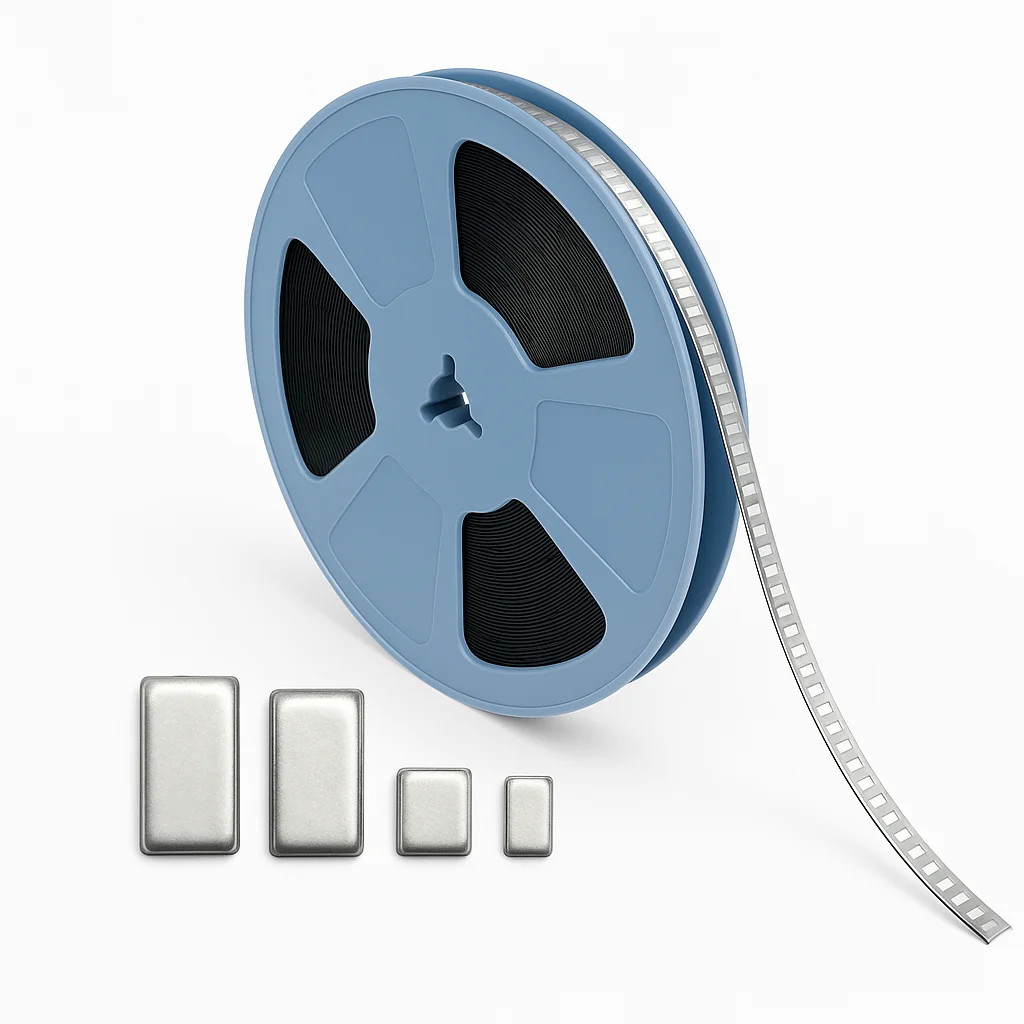

An SMT bus bar (Surface Mount Technology bus bar), also known as surface mount copper strip, SMD busbar, or taped copper strip, is a conductive interconnect component specifically designed for Surface Mount Technology (SMT) processes. Unlike traditional through-hole bus bars, SMT bus bars come in standard tape-and-reel packaging and can be soldered directly through reflow soldering process, significantly improving production efficiency and soldering consistency. In high-current PCB applications such as EV BMS, energy storage systems, and 5G communication power supplies, SMT bus bars have become the preferred solution for replacing manually soldered copper strips.
SMT Bus Bar Product Types and Features
| Product Type | Structural Features | Current Range | Typical Applications |
|---|---|---|---|
| Standard SMD Copper Strip | Flat bottom design, standard SMD pads | 50A - 150A | BMS battery management, power modules |
| Bent SMD Busbar | L-shaped/U-shaped, 3D routing | 30A - 100A | Compact power designs |
| Taped Copper Strip | Reel packaging, suitable for pick-and-place | 20A - 200A | Mass production automation |
| Custom SMT Busbar | Custom shape and dimensions | Custom | Special current/space requirements |
Technical Specifications
| Parameter Category | Parameter | Typical Range | Selection Guide |
|---|---|---|---|
| Electrical | Rated Current | 20A - 200A | Max operating current × 1.2x margin |
| Cross-sectional Area | 2mm² - 30mm² | Larger area = higher current capacity | |
| Contact Resistance | ≤0.5mΩ | Affects heating and efficiency | |
| Dimensions | Length | 10mm - 150mm | Based on PCB layout |
| Width | 3mm - 20mm | Affects current and pad design | |
| Thickness | 0.5mm - 3.0mm | Affects current and thermal resistance | |
| Soldering | Reflow Peak Temp | 260°C ± 5°C | Must match solder paste |
| Pad Design | 0.5mm - 2.0mm extension | Reference IPC-7351 standard |
Application Scenarios
| Industry | Application | Current Requirements | Recommended Solution |
|---|---|---|---|
| Electric Vehicles | BMS Battery Management | 100A - 200A | Thick copper taped busbar + Tin plating |
| Energy Storage | Battery cluster connection | 150A - 300A | Multi-layer composite busbar |
| Charging Equipment | Fast charging power modules | 50A - 150A | Standard SMD copper strip |
| 5G Telecom | Base station power | 30A - 100A | Bent SMD busbar |
| Industrial Power | Inverters, VFDs | 80A - 200A | Custom SMT busbar |
Selection Guide
- Determine Current Requirements: Set rated current based on operating current with 20%+ safety margin
- Calculate Cross-sectional Area: Estimate copper strip area at 3-5A/mm² current density
- Confirm PCB Space: Measure available space to determine length and width
- Select Plating: Choose tin/nickel plating based on soldering process and environment
- Verify Thermal Performance: Validate temperature rise through simulation or testing
For quick price and parameter calculations, use our Online Price Calculator.
Why Choose SMT Bus Bars?
- Automated Production: Compatible with pick-and-place machines, reducing labor costs
- Soldering Consistency: Reflow process ensures stable solder joint quality
- Design Flexibility: Custom shapes for complex PCB layouts
- Faster Development: No tooling required, rapid prototyping
- Lower Total Cost: Higher unit cost offset by lower production costs
Summary
SMT bus bars are critical components for high-current PCB designs, solving the inefficiency and inconsistency problems of traditional manual soldering through standardized design and automated production. When selecting, consider current requirements, space constraints, soldering process, and cost factors. For mass production, taped packaging SMT bus bars are recommended to fully leverage automated assembly advantages.
