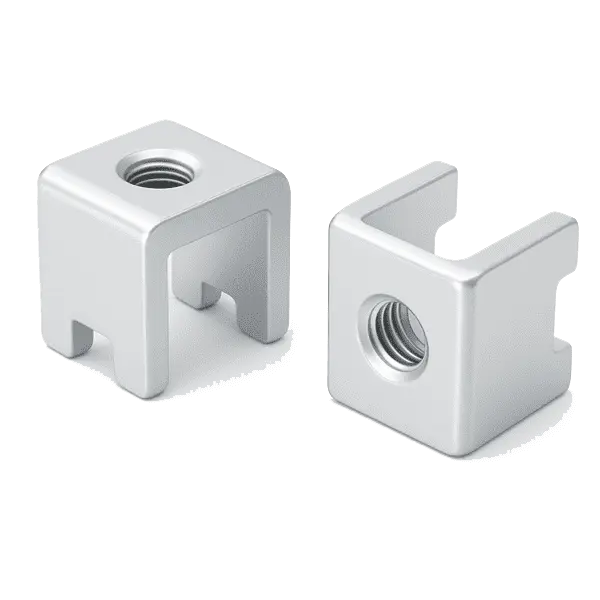

If the AC output side of your solar inverter needs to carry current to a terminal, busbar, or external harness while also keeping insulation distance and service space under control, a board-mounted terminal is often worth evaluating early. The goal is not just to connect a wire. It is to make the output interface, mounting direction, and service path clearer.
For projects that need to balance AC output, cabinet-level distribution, and maintenance access, it helps to review the welding terminal page, SMD busbar page, and applications page together. That makes it easier to judge output path, fixing method, and insulation design within one framework instead of deciding only from current rating.
Why the AC output side of a solar inverter often needs a terminal
The AC output side usually combines higher current, a clearer cable exit direction, and tighter cabinet space constraints. Compared with directly soldered wires, a board-mounted terminal helps standardize the output point, fastening position, and routing direction, while also making downstream maintenance easier.
- Useful for bringing inverter output to an external cable or cabinet-level distribution point.
- Useful when the project needs a clear insulation distance and mounting direction.
- Useful for production programs that care about repeatability and serviceability.
- Useful when the team wants less temporary routing and rework inside the cabinet.
Which positions deserve AC output terminals first
| Application point | Why a terminal fits better | Main design focus |
|---|---|---|
| Inverter AC output interface | The exit direction is fixed and the interface can be standardized | Current path, screw access space, and insulation distance |
| AC distribution transition point | Helps separate board output from cabinet wiring management | Solder area, terminal height, and service space |
| Grid-tie or maintenance wiring position | Makes connection and disassembly logic clearer | Fastening method, marking position, and operator access |
When a busbar or wire harness should stay in place
If a section behaves more like a fixed high-current short path, a busbar is usually the more natural fit. If the exit distance is longer, routing is more complex, or maintenance happens more often, a harness is usually more appropriate. A welding terminal is strongest when it handles the output interface and transition point instead of replacing every connection form.
| Approach | Best role | Main caution |
|---|---|---|
| Welding terminal | AC output interface, transition point, fixed cable exit position | Confirm insulation distance, load path, and service space early |
| SMD busbar | Fixed high-current short paths and board-level distribution nodes | Layout, temperature rise, and installation space need early review |
| Wire harness | Longer connections, cabinet routing, and positions with more movement | More flexible, but space use and repeatability still need review |
Five questions to answer before selecting
1. Does the terminal carry the main output or mainly the output transition
If the terminal mainly manages the output transition, structural definition, exit direction, and mounting method usually matter more than simply increasing size. If it also carries the main output path, section size, contact area, and heat spreading must be reviewed together.
2. Are insulation and creepage distances sufficient
The AC output side of an inverter has clearer safety-spacing requirements. The design should check not only conductivity but also the space between the terminal and nearby conductors, the housing, and mounting parts.
3. Will service and inspection remain practical
If the output side will need frequent disassembly, replacement, or field inspection later, tool access and labeling must be reviewed early. A terminal is good for creating a clear interface, but it does not remove the need to plan for service.
4. Will vibration and cable pull feed stress back into the solder joint
Inside a cabinet, cable weight, bending force, and vibration gradually accumulate at the fixed point. If the downstream structure does not isolate those loads, the solder joint often fails before the cable does.
5. Does the project prioritize consistency or routing freedom
When the project is already in a volume-production stage, a welding terminal helps standardize the interface definition. If the structure and cable exit still change often, the flexibility of a harness may be more useful for now.
A more practical decision sequence
- Separate the AC output path, transition path, and service path first.
- Confirm which positions need fixed board mounting and which need flexible movement.
- Evaluate insulation distance, exit direction, and load path together.
- Then decide how terminals, busbars, and harnesses should split the work.
FAQ
Does every solar inverter AC output need a welding terminal?
No. If the path is simple and service actions are rare, other connection methods may still work. But when the project cares about interface clarity, insulation control, and production consistency, a welding terminal usually deserves earlier priority.
Can an AC output terminal replace a busbar?
At some interface points, yes. But it is usually better not to let the terminal carry every fixed main path. A more practical approach is to let the busbar handle the fixed main circuit and the terminal handle the output interface.
What is easiest to miss in this scenario?
The easiest miss is delaying insulation distance and service space until too late. Many solutions work electrically on paper but expose structural issues during installation and inspection.
Conclusion
Selecting an AC output terminal for a solar inverter is not about choosing one connector in isolation. It is about assigning the output interface, fixed main path, and flexible connection to the solutions that fit them best. Once current path, insulation distance, and service style are clarified early, the production design usually stabilizes faster.
