Quick answer: Select copper-aluminum connectors for a rail-transit auxiliary converter by controlling material transition, contact pressure, insulation support and environmental protection together. Cross-section and initial torque alone cannot prove resistance, temperature, preload, vibration or corrosion life.
Questions answered on this page
- Why use copper-aluminum transition hardware in auxiliary converters?
- How should washers, finish and contact faces be selected?
- How can galvanic corrosion and moisture contamination be reduced?
- How do thermal cycling and rail vibration change pressure?
- How should production resistance and temperature checks be built?
Application context

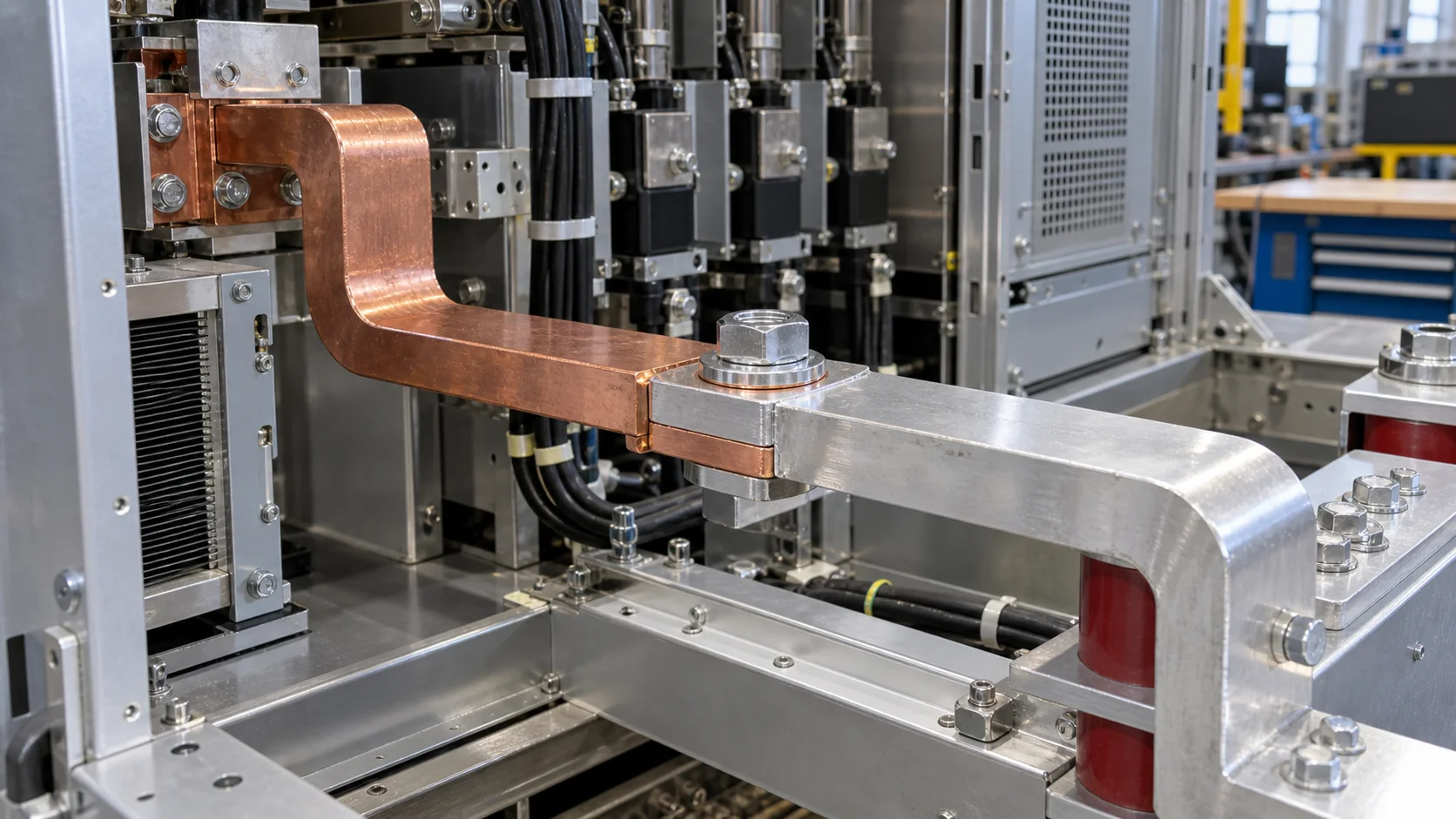

Rail vehicles and traction auxiliary systems may connect copper conductors, aluminum conductors, aluminum housings and copper terminals in one cabinet. Copper-aluminum transition bars or plated connectors address material mismatch while preserving current capacity, cooling and assembly space. Hongchuan supplies copper-aluminum hardware matched to materials, thickness, hole pitch, current, environment, bolts, washers and torque.
Five control points
| Point | Confirm | Risk |
|---|---|---|
| Transition | Copper-aluminum interface, composite zone and finish | Rising interface resistance |
| Pressure | Bolt, washer, hole and support | Thermal-cycle relaxation |
| Environment | Moisture, salt, cleaner and condensation | Galvanic corrosion |
| Mechanical | Cable load, vibration and bracket stiffness | Movement or fatigue |
| Thermal | Current, cooling and nearby heat | Local overheating |
Washers and contact faces
A washer spreads bolt load and affects surface embedment, film disruption and preload retention. Aluminum can suffer indentation and oxidation; copper and plating require checks for wear, contamination and mating materials. Control flatness, burrs, cleanliness, washer position and bolt support so current does not concentrate in a tiny contact spot. See copper-aluminum delamination validation.
Temperature, thermal cycling and vibration
Measure copper, aluminum, transition area, bolt head, washer and insulation support under power. Before and after thermal cycling, use the same current and points for four-wire resistance comparison. Record torque, bolt marks and movement. After vibration inspect looseness, washer indentation, bar cracks, bracket wear and insulation scuffing.
- Establish room-temperature resistance and drop baselines.
- Record temperature at rated, short overload and worst ambient conditions.
- Repeat resistance, temperature and preload checks after cycling and vibration.
- For critical lots inspect cross-section, interface, finish and corrosion morphology.
Galvanic-corrosion controls
Use suitable interface structure, finish, isolating elements, sealing and drainage to limit electrolyte entry. Do not coat away the real conductive contact area, and keep aluminum debris, cleaner residue and metal powder out of the joint. Define contact cleaning, bolt replacement, torque recheck and visual criteria for service.
FAQ
Is a large enough section sufficient?
No. Transition geometry, pressure, corrosion, support, vibration and thermal cycling affect life.
Can thermal cycling be skipped when initial resistance is low?
No. Different expansion and preload relaxation may appear only after cycling.
How should samples be specified?
Provide materials, section, hole pitch, current, environment, washer, bolt and torque. Start with the copper-aluminum hardware page.
