Quick answer: Select copper-aluminum connectors for an electric-forklift charger by checking the interface, washer and preload, charge peaks, cabinet temperature, cable support, dust, moisture and post-service resistance, not power or section alone.
Questions answered on this page
- Why use copper-aluminum transition hardware in forklift chargers?
- How do charge start and full-load operation affect heating?
- How do washers and bolts retain pressure?
- How do dust, moisture and cleaner affect corrosion?
- How should service checks be repeated?
Application context

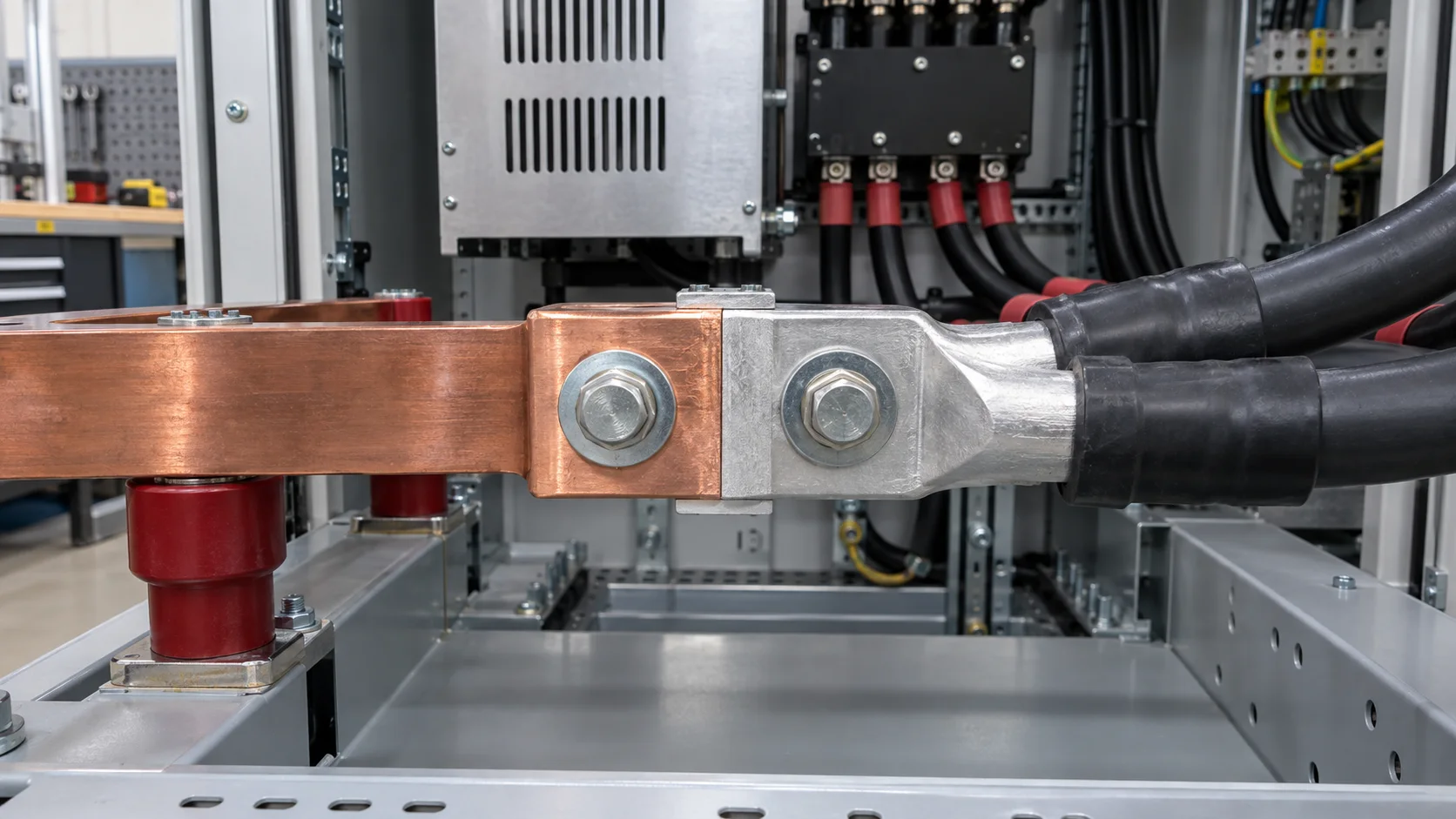

Forklift chargers connect rectifiers, capacitors, DC output and battery cables. Copper bars, aluminum conductors, aluminum housings and copper terminals may coexist. Transition or composite hardware handles the material change and compact layout. Cable mass and mating actions must not load the interface. Hongchuan supplies copper-aluminum connectors matched to materials, thickness, pitch, current, cable, bolts, washers, torque and enclosure.
Five control points
| Point | Review | Risk |
|---|---|---|
| Material | Interface, composite zone and finish | Rising resistance |
| Pressure | Bolt, washer, hole and support | Thermal relaxation |
| Current | Continuous, peak, ripple and drop | Local heating |
| Environment | Dust, moisture, cleaner and condensation | Corrosion or contamination |
| Service | Tools, cable and reassembly | Torque or position shift |
Resistance and charging temperature
Measure copper, aluminum, transition, bolt, washer and insulation at cold start, rated charge, peak charge and consecutive vehicles. Use four-wire drop before and after thermal cycling at the same current and points. Keep cable and bar support independent so the electrical joint is not a mechanical bracket. Use copper-aluminum interface validation for structure.
Corrosion and service inspection
On aluminum inspect oxide, indentation and hole edges; on copper and finish inspect wear, contamination and mating materials. Use interface design, sealing, drainage and protection without coating away the conductive area. Establish resistance, drop and temperature baselines, then run charge, thermal, vibration, humidity and service exposure and repeat appearance, torque and resistance checks.
FAQ
Is a large enough section sufficient?
No. Pressure, corrosion, cable support, temperature and service matter too.
Can thermal cycling be skipped with low initial resistance?
No. Expansion mismatch and preload relaxation may appear later.
How should samples be specified?
Provide materials, pitch, current, cable, environment, washer, bolt and torque. Start with the copper-aluminum hardware page.
