HIGH CURRENT PCB HARDWARE
Find existing busbar, PCB terminal, SMT nut and power-jumper parts. Start with the connection method and available space, then check materials, finishes and drawings. Current values support preliminary comparison; validate the final design against the actual PCB, joints and temperature rise.
| Manufacturer Part Number | Dimensions | Estimated Current | Material | Surface Treatment | Category | Actions |
|---|---|---|---|---|---|---|
BTC-SJA182BTR

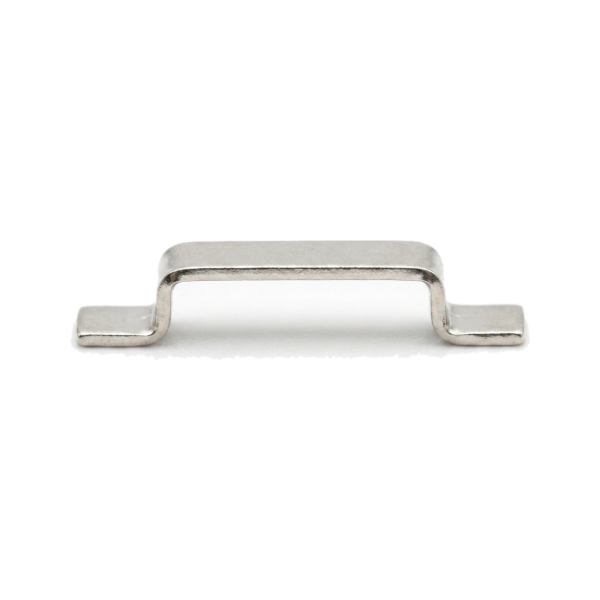

BTC-SJA182BTR SMT Power Line Jumper (Span 1.85mm)
|
L:
4.9
W:
1.5
T:
1.8
|
25A
|
Brass | 镍上锡电镀 | SMT Power Jumpers | |
|
BTC-SJD182BTR
BTC-SJD182BTR SMT Power Line Jumper (Span 8.16mm)
|
L:
11.6
W:
1.7
T:
1.8
|
25A
|
Brass | 镍上锡电镀 | SMT Power Jumpers | |
|
BTC-SJK182BTR
BTC-SJK182BTR SMT Power Line Jumper (Span 23.40mm)
|
L:
26.8
W:
1.7
T:
1.8
|
25A
|
Brass | 镍上锡电镀 | SMT Power Jumpers |
The catalog brings available dimensions, materials and finishes together. Check mechanical fit first, then electrical and assembly conditions before choosing a part.
Download available datasheets or request missing tolerance, land-pattern and packaging information by part number. Confirm the drawing revision for sampling and procurement.
If a standard part does not fit, share a dimensioned drawing, material, finish, quantity and operating conditions. Manufacturing and validation feasibility is confirmed per project.
Sample and quotation requests carry the selected part number. Add the required quantity and project stage; sample cost, minimum order, lead time and inspection documents are confirmed per part.
