HCSP-2542CN-TR · 25 × 4 × 2 mm Nickel-Plated Copper SMD Busbar
Check the part and mounting requirements, then confirm samples and a quotation.
Product description
HCSP-2542CN-TR is an SMD busbar for PCB conductive connections with nominal dimensions of 25 × 4 × 2 mm, a copper substrate, a nickel-plated finish, and tape-and-reel packaging.
Check PCB pads, available space and the soldering process against the corresponding datasheet. Confirm assembly and temperature rise with samples. Catalog current estimates do not replace application testing.
Provide the quantity and application conditions to confirm samples, packaging quantity, lead time and quotation.

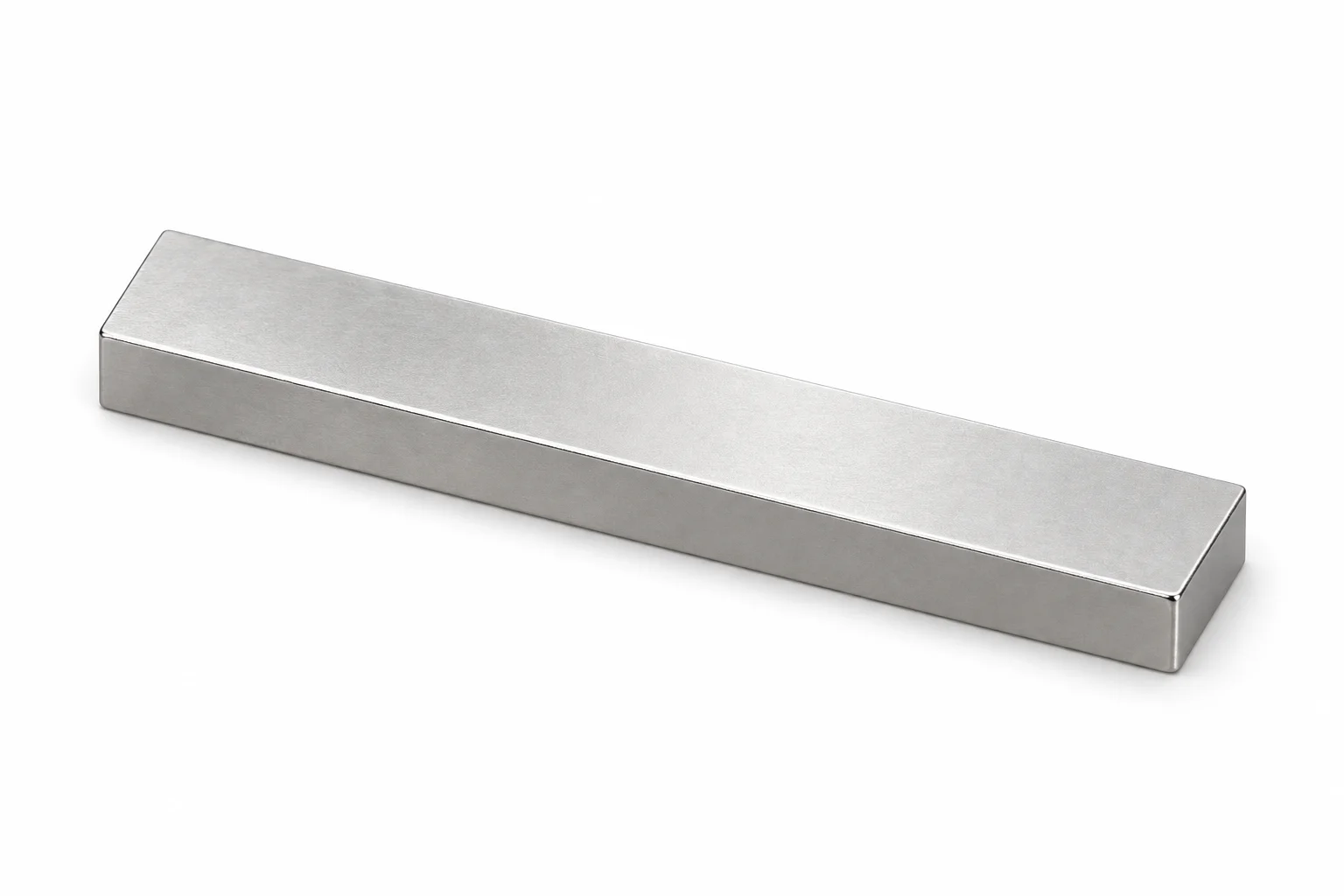

The product image is an illustration generated from the drawing. Use the datasheet and approved samples for dimensional, tolerance and geometry requirements.
Product specifications
| Part Number | HCSP-2542CN-TR |
| Category | SMD Busbars |
| Dimensions (L×W×T) | 25.00mm × 4.00mm × 2.00mm (0.984" × 0.157" × 0.079") |
| Material | Copper |
| Plating | Nickel Plated |
| Catalog current estimate | 56 AAutomatic estimate, not a rated value. Test conditions are not specified; validate with your PCB, joints, ambient temperature and permitted temperature rise. |
| Packaging | Tape & Reel |
| Minimum Order | 1 pcs |
| Minimum Package Qty | 1 pcs |
Four checks before ordering
- Mechanical fitOutline dimensions, pad or hole locations, and mounting height; use the mutually confirmed drawing revision.
- Material and processMaterial grade, plating and its thickness, soldering or assembly process. A catalog material label is not a material report.
- Operating conditionsOperating current, ambient temperature and temperature-rise limit; for threaded parts, also confirm tightening and mechanical loads.
- Purchase and documentsSample or production quantity, packaging, target delivery and any test or compliance documents required for your project.
This page shows available catalog data. Confirm unlisted tolerances, plating thickness, test results and compliance documents individually; their availability or certification is not implied.
